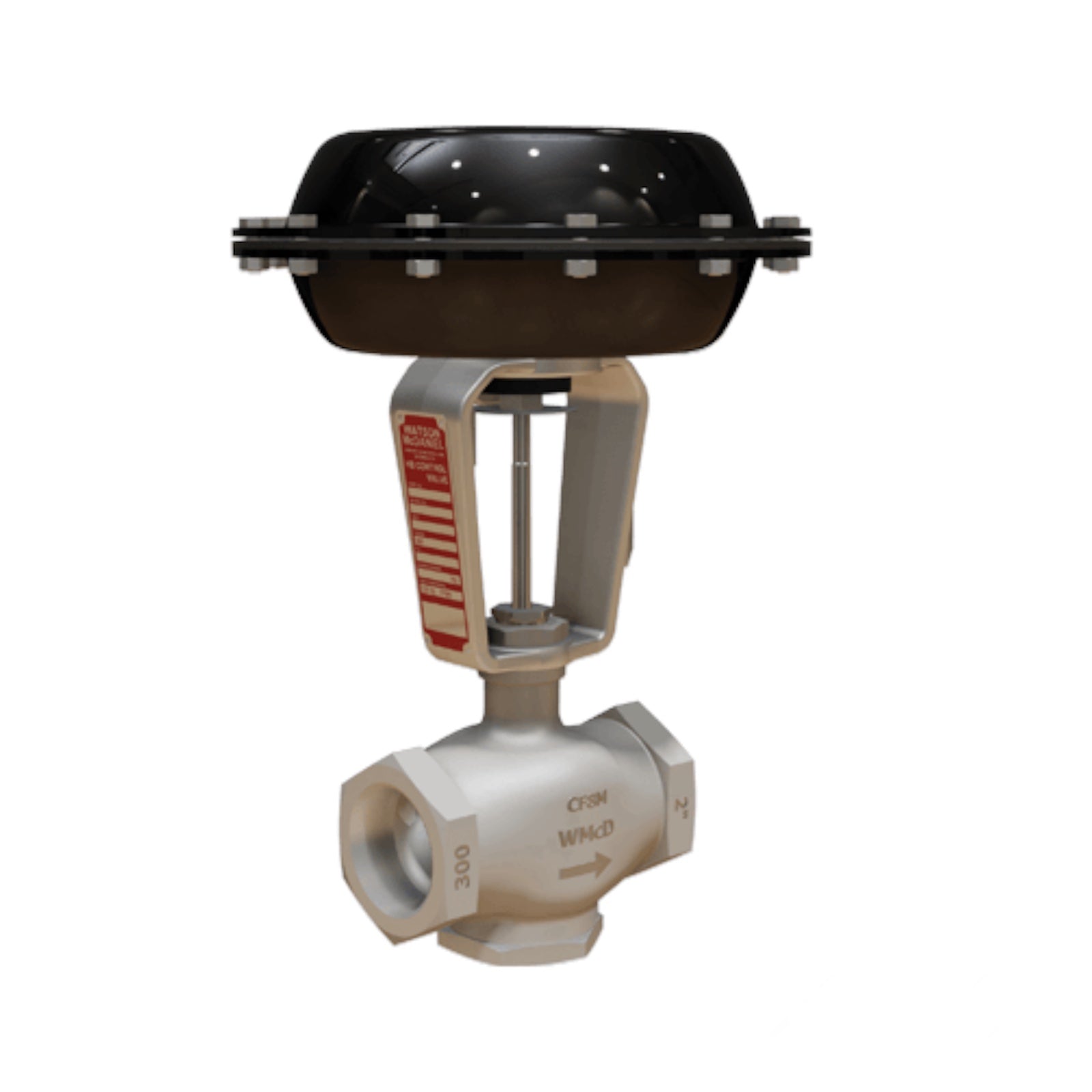

WATSON MCDANIEL CONTROL VALVE HB SERIES HB1000F

Estimated Delivery 2 weeks

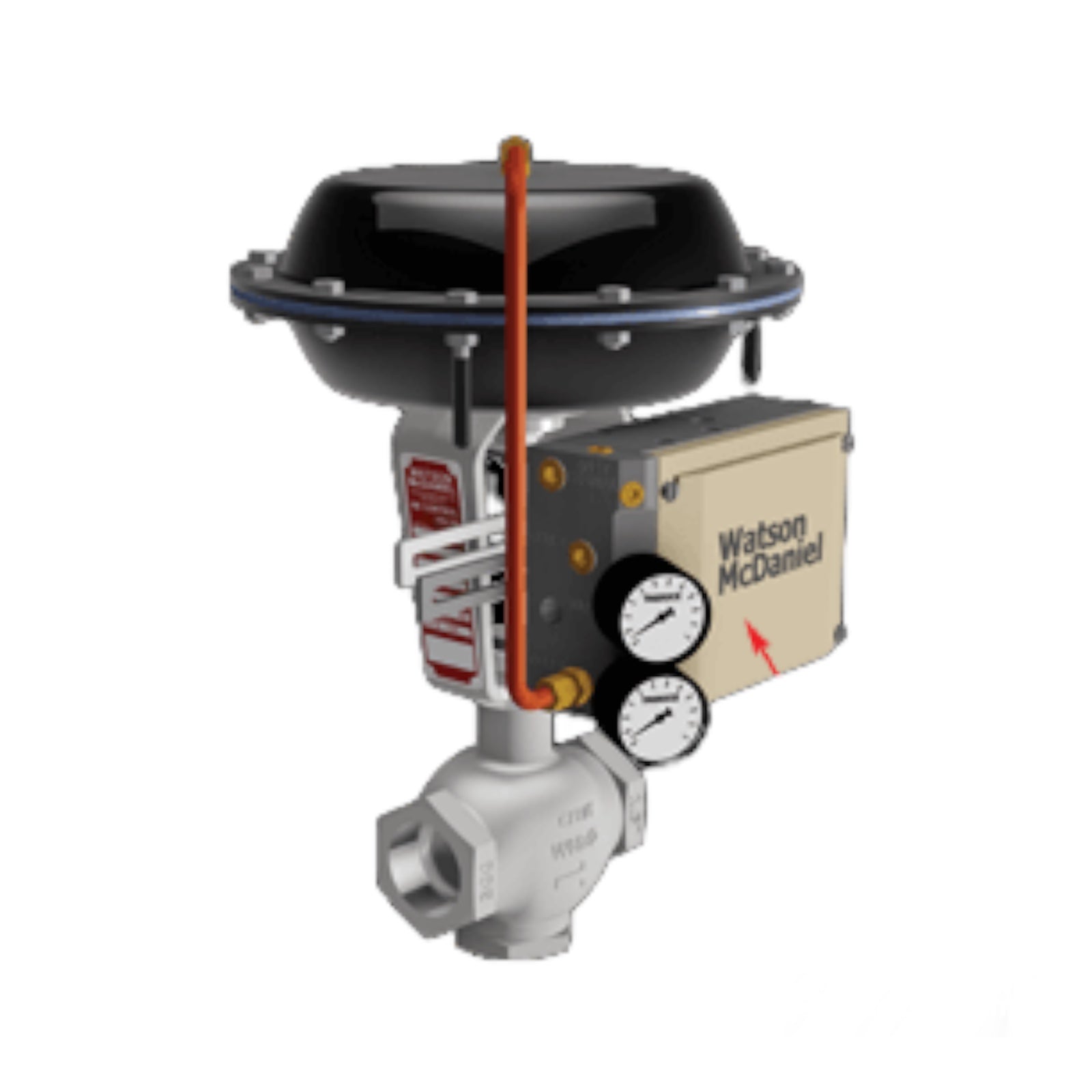

The Watson McDaniel HB Series Stainless Steel 2-Way Control Valves are made to withstand the rigorous nature of steam service and are compatible with air and water as well. These stainless steel valves are a cost-effective alternative when compared to valves with bronze, cast iron or cast steel bodies. The standard configuration has an equal percentage flow characteristic with metal-to-metal seating, spring-loaded Teflon V-ring stem packing and Pneumatic Actuator. The Pneumatic Actuator is controlled by a 3-15 PSIG standard instrument air signal that will modulate the position of the valve.

• Class IV Shut-Off

• Equal Percentage, Fail-Close
• Linear Trim, Reduced Port, Soft Seat options available
• Stainless steel body, plug, and seat.

• 720 PSIG @ 100 F maximum operating pressure
• 50 PSIG maximum air supply pressure
